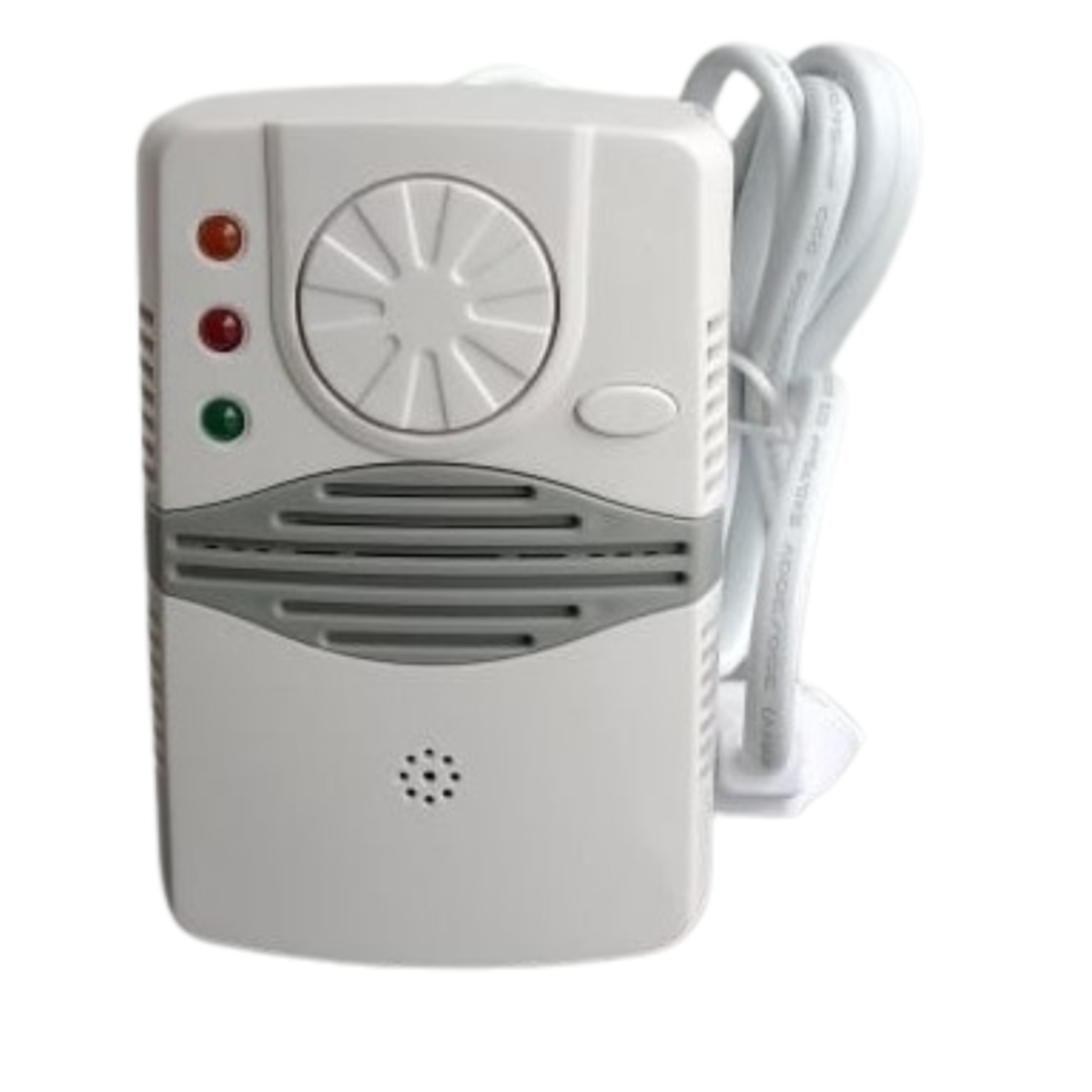

KEY FEATURES-

• High Stability sensor with Planar Technique, Induced Gas Low Power Consumption
• Unique Design
• Wall Mounted
• AC 220V/DC 12V, Inner Switching Power
• MCU Processing, Intelligent Analysing
• Automatic Fault Detection, Early Warming
• Detachable gas convection window,
• Easy to clean the cover and change the sensor

KEY FEATURES-

• Independent/Network
• Adopted SMT, High EMI/RFI Immunity




  Technical Data

  Parameter	Specification
  Induced Gas	Natural Gas/LPG
  Working Voltage	220V 50 Hz
  Static Current	< 100 mA (DC 12V)
  Alarm Current	< 130 mA (DC 12V)
  Power Consumption	< 3 W
  Alarm Sound Level	80 dB/m
  Alarm Density	10% LEL (0.5%) (5000 PPM) with CH
  Operating Temperature	10°C to +55°C
  Operating Humidity	< 95% RH
  Alarm Density Error	< ±3% LEL
  Alarm Mode	Sound & Flash/Network Alarm Signal
  Size	100 x 66 x 33 mm

  LED Information

  LED State	Meaning
  RED LED FLASH	Gas leaking
  YELLOW LED ON	Inner malfunction
  GREEN LED FLASH	Sensor warm-up and self-test
  GREEN LED ON	Normally working
